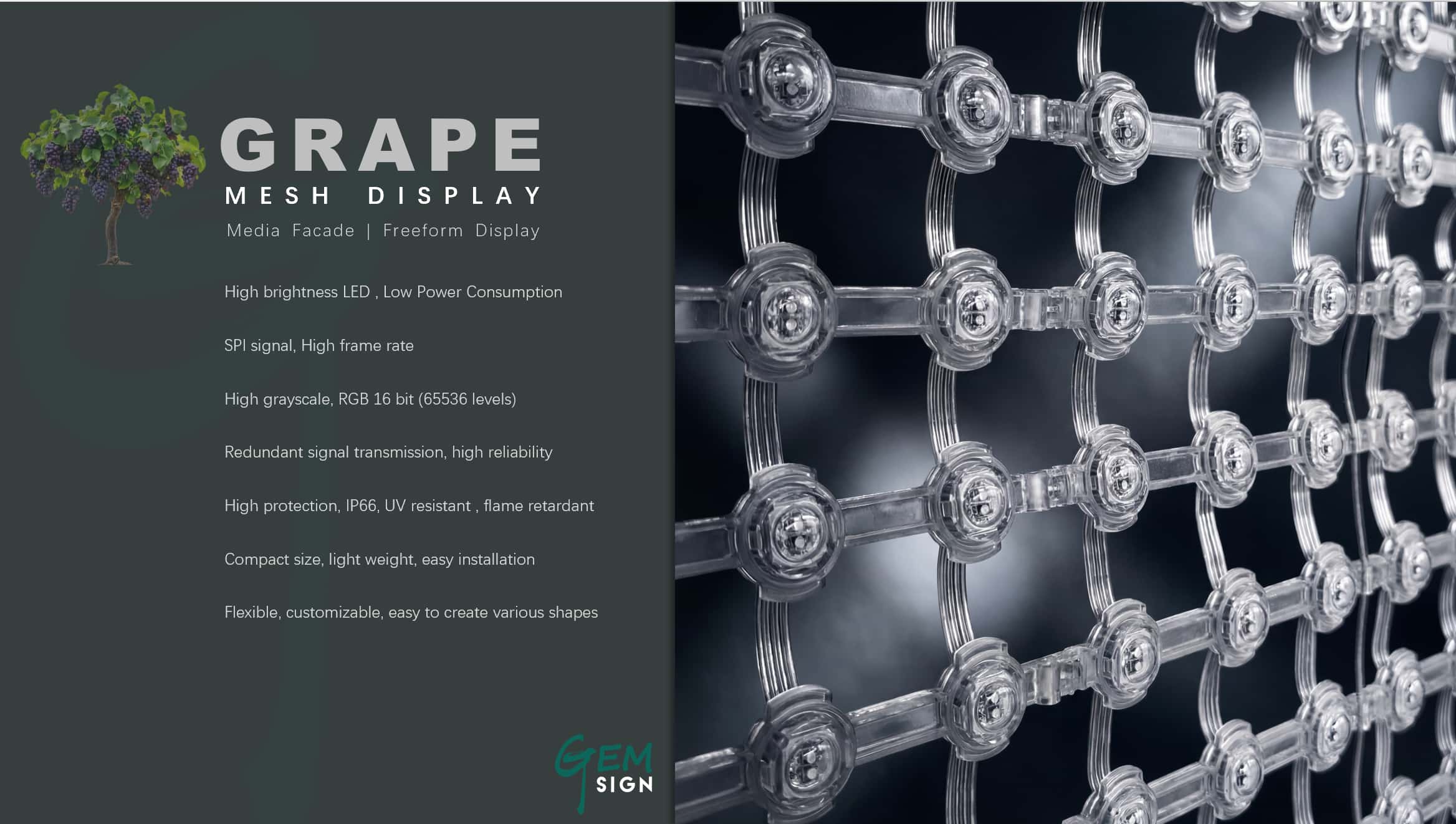

High brightness LED , Low Power Consumption
SPI signal, High frame rate
High grayscale, RGB 16 bit (65536 levels)
Redundant signal transmission, high reliability
High protection, IP66, UV resistant , flame retardant
Compact size, light weight, easy installation
Flexible, customizable, easy to create various shapes
Pixel Pitch :
P50, P62.5, P100Brightness :
1000-1500 nitMax. consumption :
30-50 w/m2Ingress Protection :
IP66Transparency :
70%Service :
Front/Back

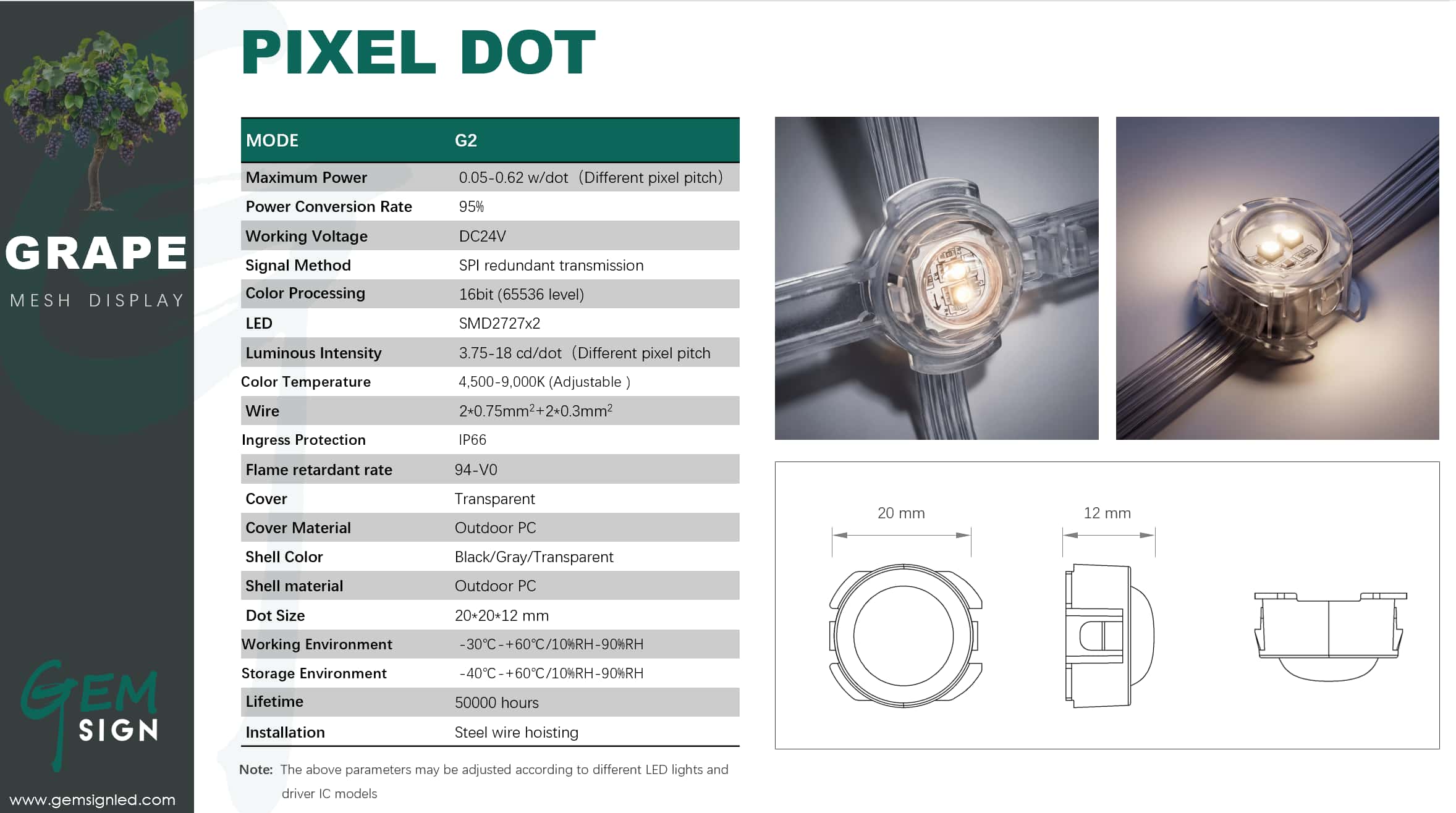

PIXEL DOT
|
MODE |
G2 |
|
Maximum Power |
0.05-0.62 w/dot（Different pixel pitch） |
|
Power Conversion Rate |
95% |
|
Working Voltage |
DC24V |
|
Signal Method |
SPI redundant transmission |
|
Color Processing |
16bit (65536 level) |
|
LED |
SMD2727x2 |
|
Luminous Intensity |
3.75-18 cd/dot（Different pixel pitch |
|
Color Temperature |
4,500-9,000K (Adjustable ) |
|
Wire |
2*0.75mm2+2*0.3mm2 |
|
Ingress Protection |
IP66 |
|
Flame retardant rate |
94-V0 |
|
Cover |
Transparent |
|
Cover Material |
Outdoor PC |
|
Shell Color |
Black/Gray/Transparent |
|
Shell material |
Outdoor PC |
|
Dot Size |
20*20*12 mm |
|
Working Environment |
-30℃-+60℃/10%RH-90%RH |
|
Storage Environment |
-40℃-+60℃/10%RH-90%RH |
|
Lifetime |
50000 hours |
|
Installation |
Steel wire hoisting |
MESH DISPLAY
|
MODE |
G2-50 |
G2-62 |
G2-100 |
G2-125 |
G2-150 |
|

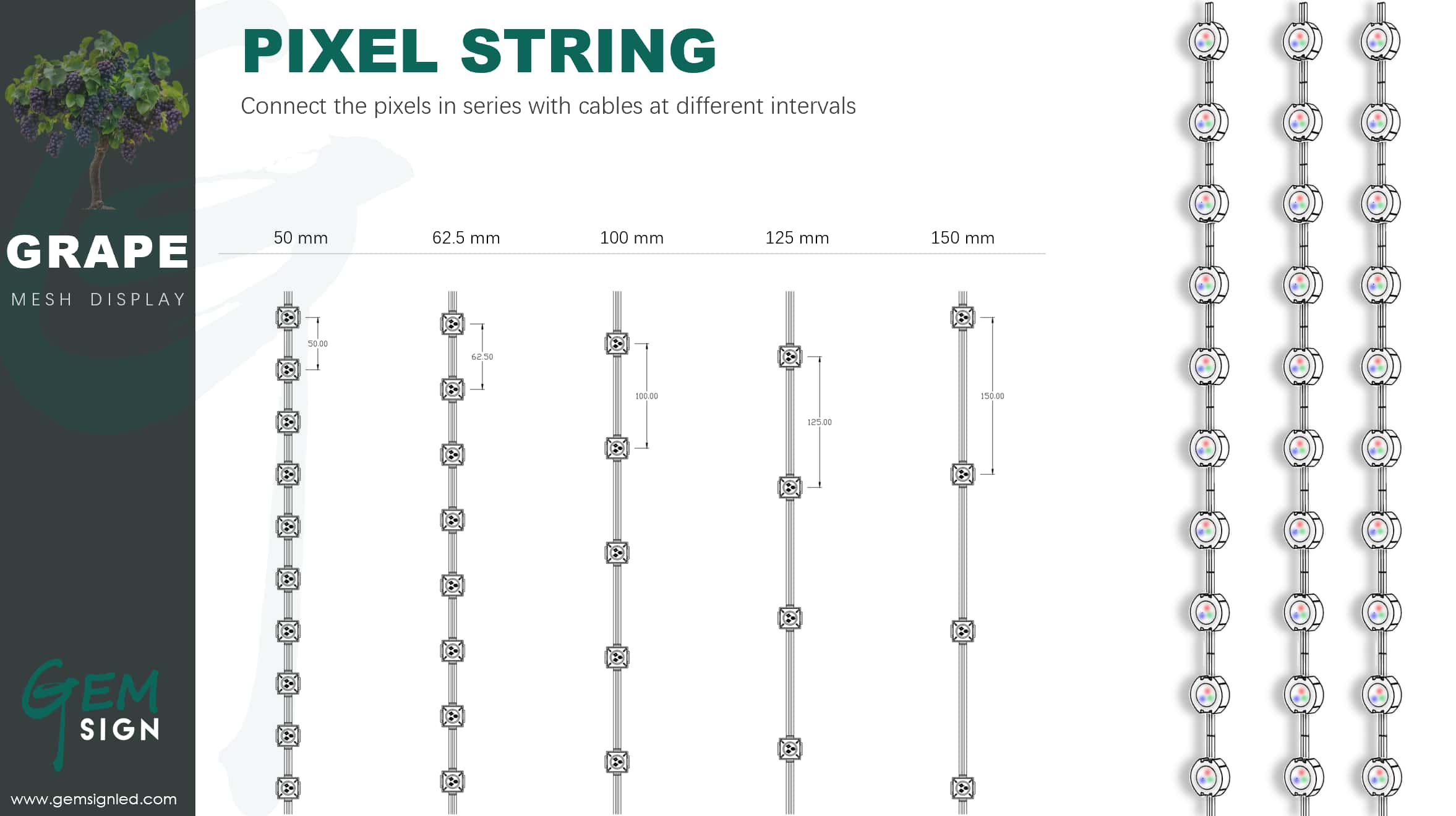

Pixel Pitch (mm) |
50 |
62.5 |
100 |
125 |
150 |
|
Resolution（dots/m2) |
400 |
256 |
100 |
64 |
44 |
|
Weight（kg/m2） |
4.9 |
3.5 |
1.7 |
1.4 |
1.2 |
|
Working Voltage (DCV) |
24 |
24 |
24 |
24 |
24 |
|
Brightness（nit） |
1500 |
1000 |
1000 |
1000 |
800 |
|
Power （w/dot） |
0.128 |
0.134 |
0.342 |
0.534 |
0.616 |
|
Power （w/m2） |
51.30 |
34.20 |
34.20 |
34.20 |
27.36 |

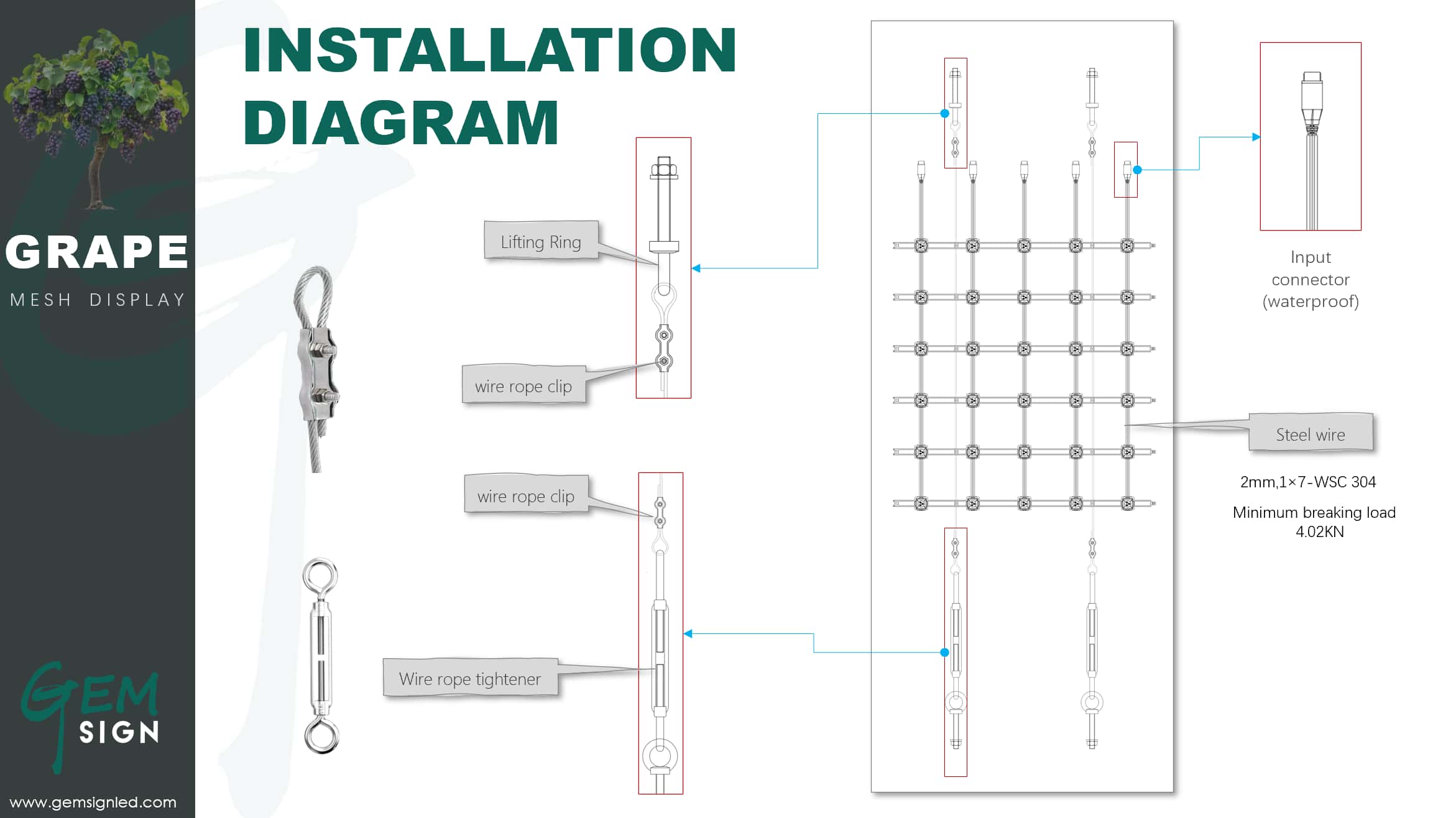

l Simplified multi-level mechanism for power supply and signal transmission l Redundant transmission of SPI signals without the need for sub control cards or decoding l DC24V direct drive enables long-distance power transmission without the need for secondary voltage transformation l The power supply and signal unit (PSU) is located on one side of the screen and can be maintained indoors l Using steel wire rope lifting, no complex installation structure is required
