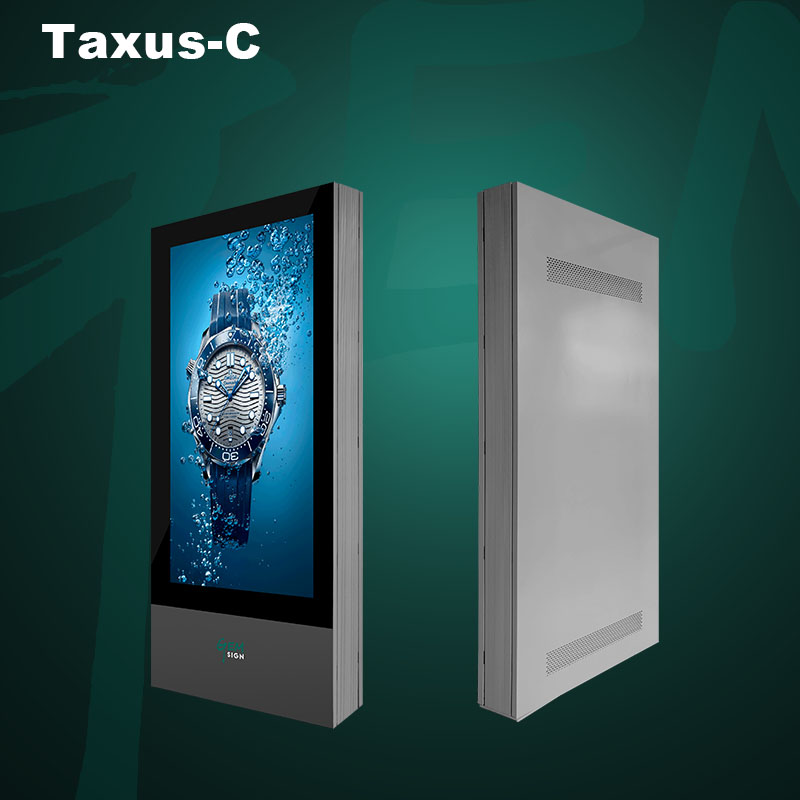

Taxus series is outdoor high-brightness led poster featuring high definition, perfect display ratio of 16:9 with pixel pitch ranging from 1.25mm to 2.6mm, and IP65 high waterproof rating.
Pixel Pitch :
1.25mm, 1.56mm, 1.95mm, 2.6mmLED Type :
GOBModule Dimensions :
250 x 250 mmActive Dimensions :

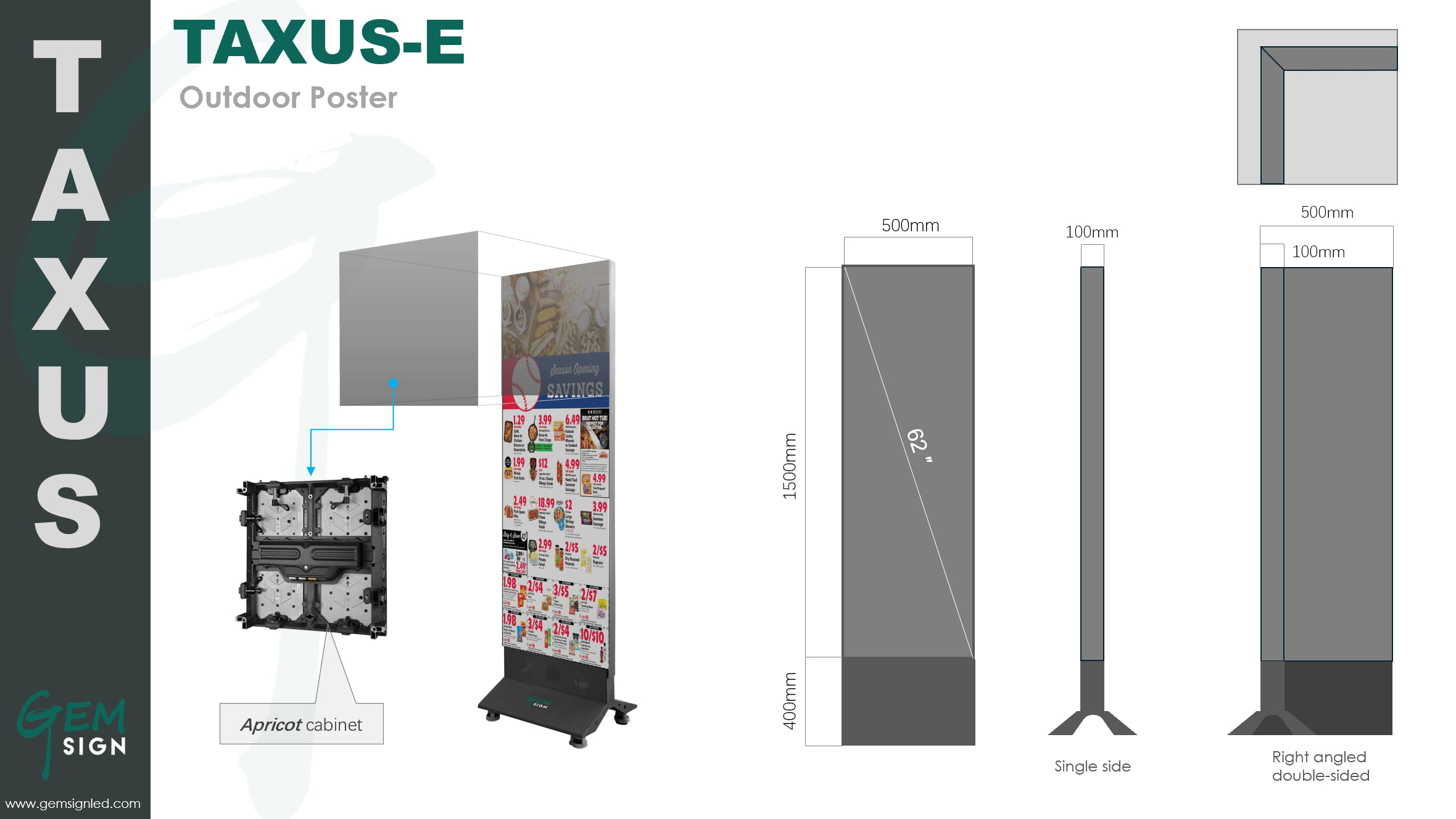

Taxus-C/Taxus-S: 57", 79", 101" Taxus-E: 62"Brightness :
4000-5000 nitIngress Protection :
IP65Installation/Service :

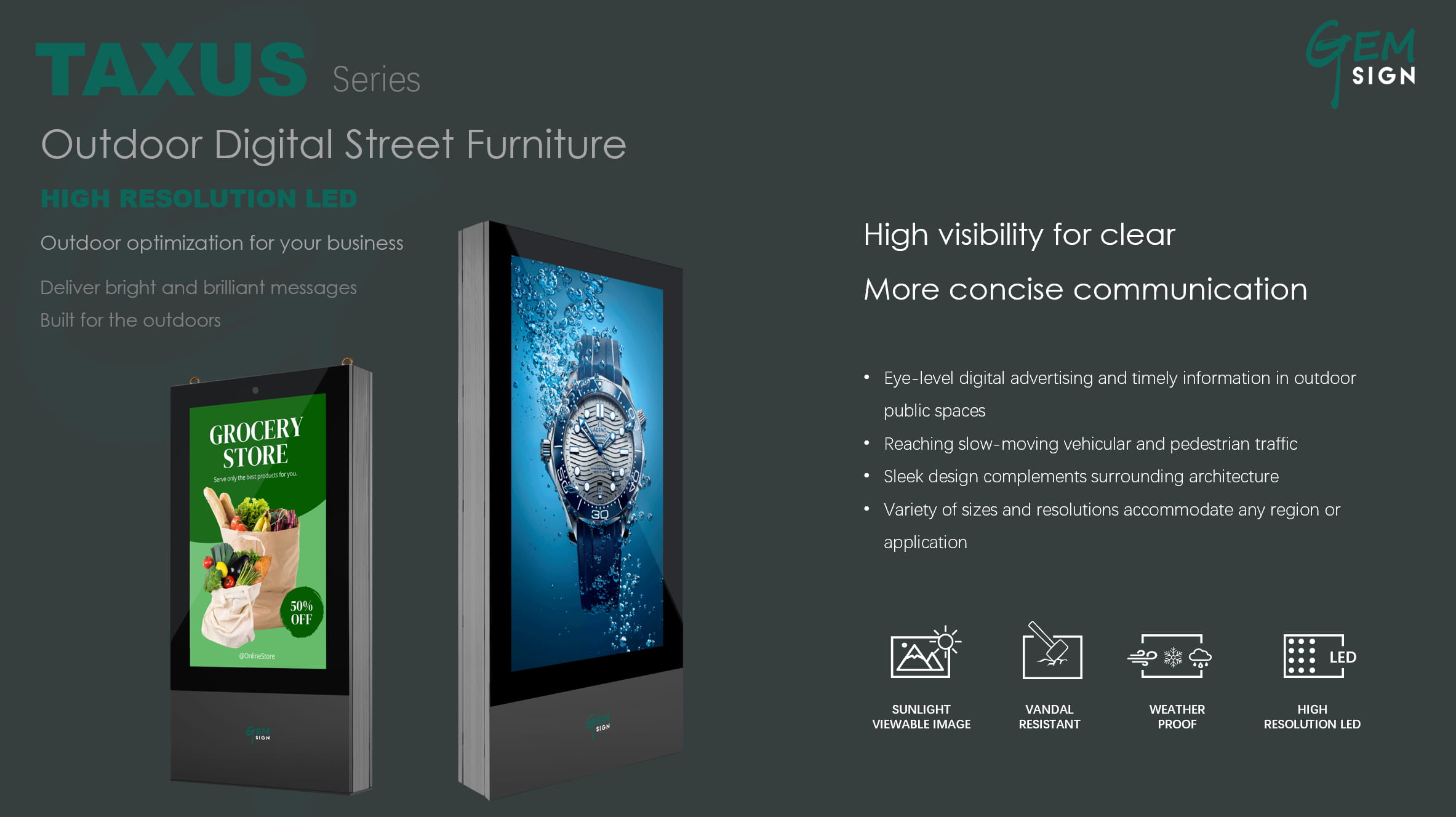

Front MaintenanceTaxus LED street furniture features some of the brightest imagery in the industry and built to withstand full-sun conditions, Taxus digital LED street furniture showcases crisp, high- resolution videos so advertisers look their best.
Sun-Cutting Brightness
At 5,000 nits of adjustable brightness, messages are visible in any environment, at any time of day, making this the only truly daylight-viewable solution.
Clear Image Quality
The GOB LEDs produce richer colors and crisp details for exceptional image quality at close distances, ideal for real-life imagery, small text and intricate detail.
Adaptive, Customizable and Easy to Install

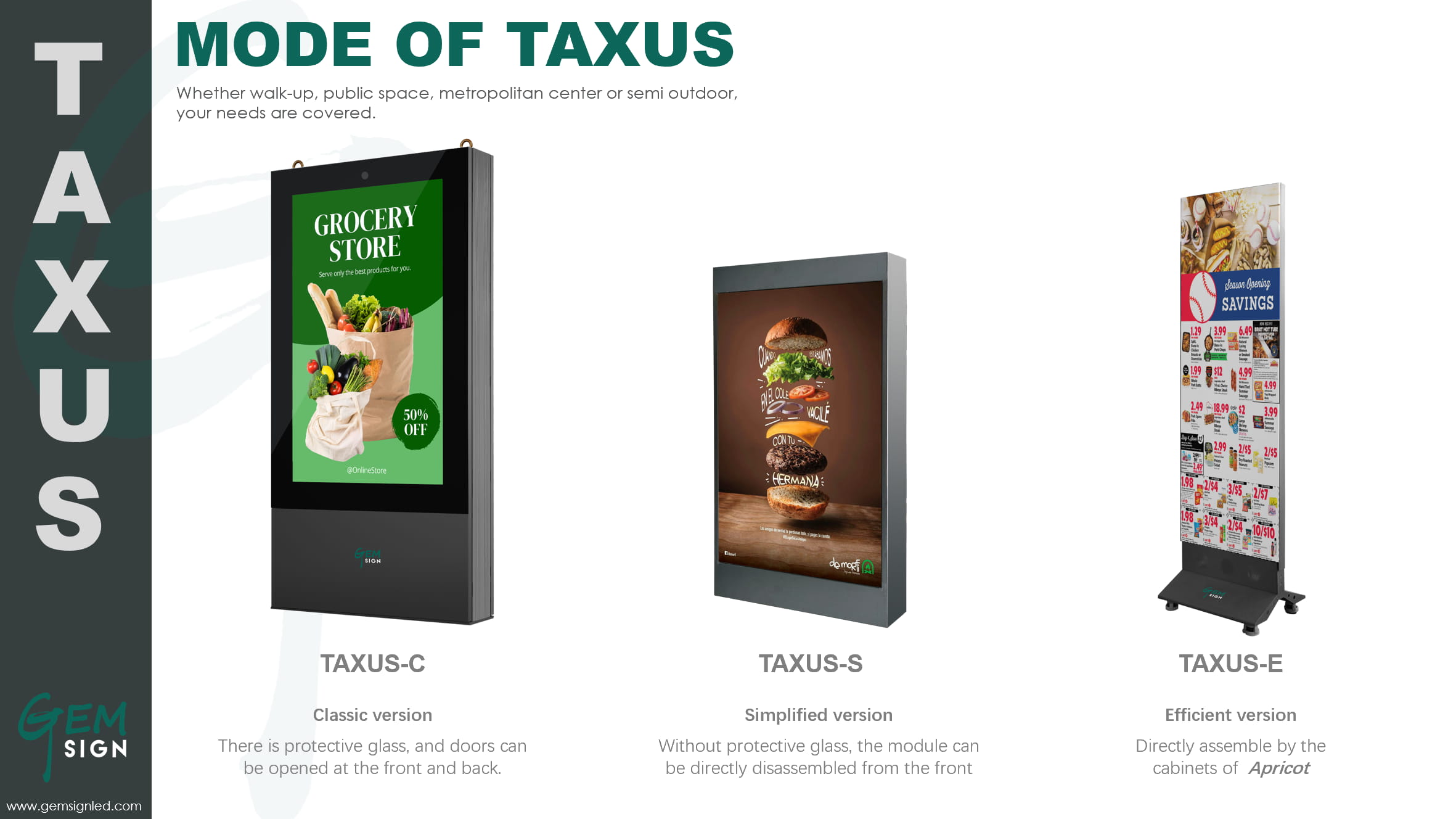

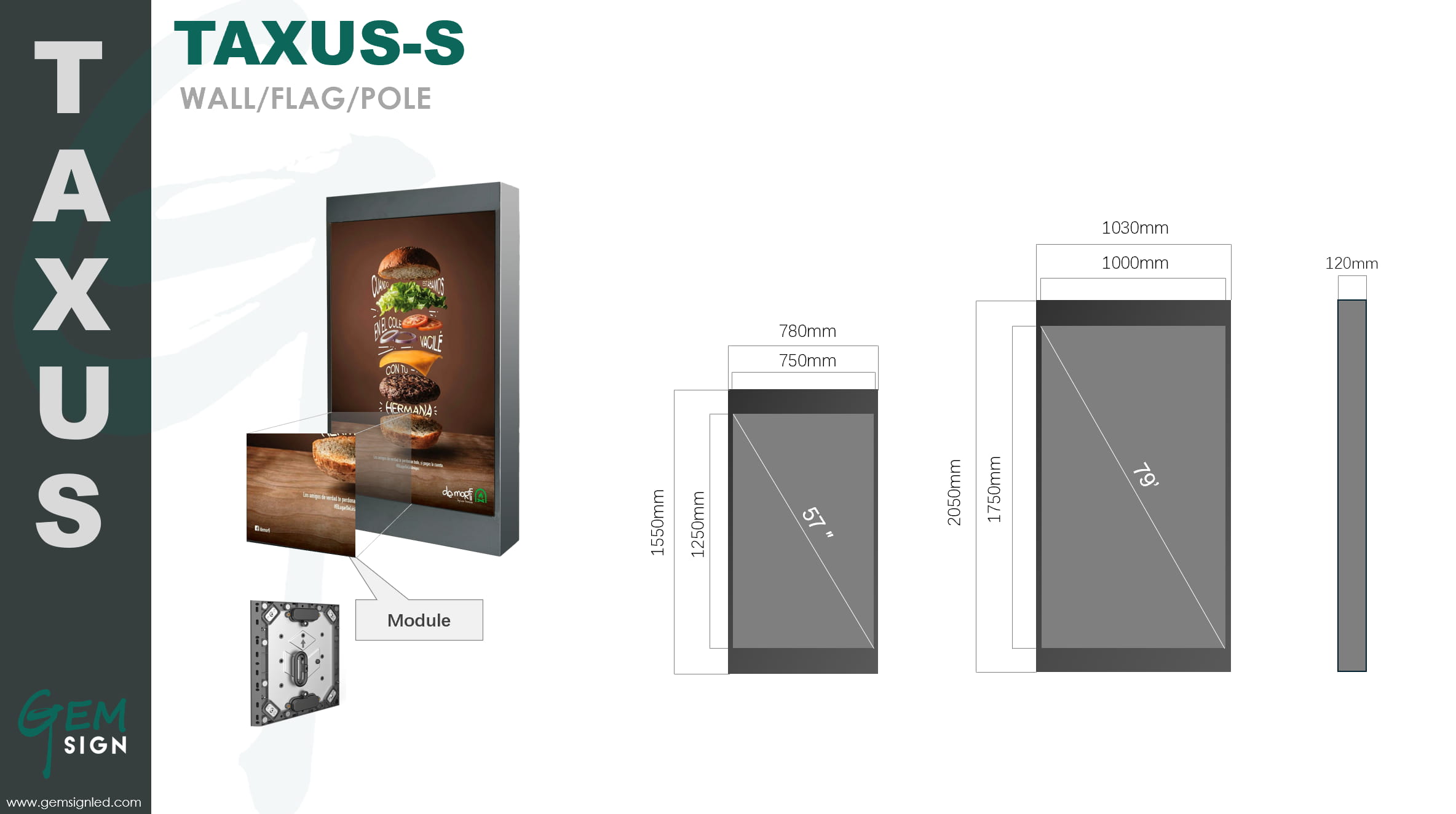

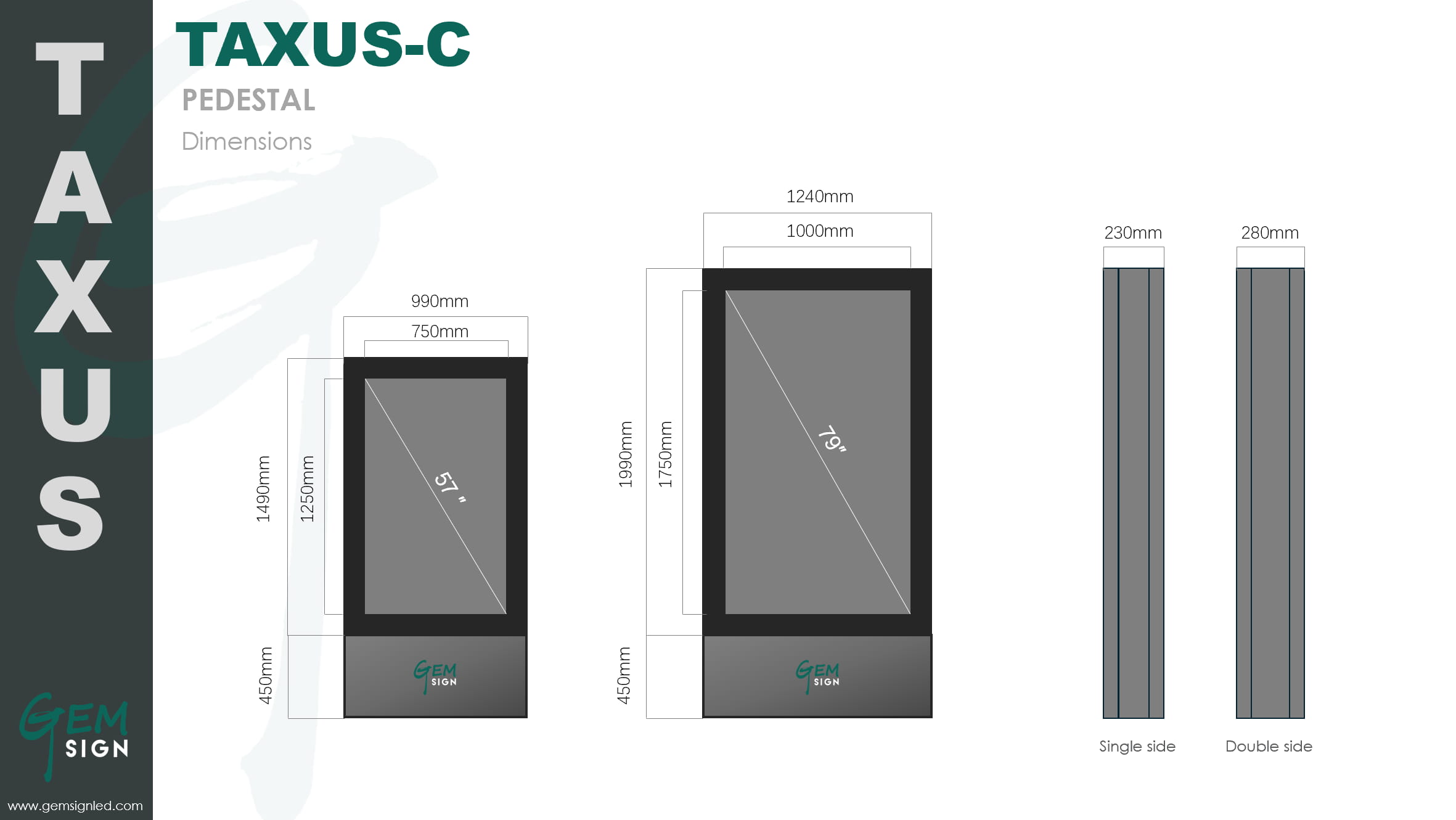

Several mounting applications include pole, wall, flag or pedestal. Adaptive and customizable with easy configuration, our digital street furniture is easy to install. Whether walk-up, public space, metropolitan center or semi outdoor, your needs are covered.
| TECHNICAL PARAMETER | Taxus57 | Taxus79 | ||||
| Taxus57-1.2 | Taxus57-1.5 | Taxus79-1.2 | Taxus79-1.5 | Taxus79-1.9 | ||
| Physical | Pixel Pitch (mm) | 1.25 | 1.56 | 1.25 | 1.56 | 1.95 |
| Pixel Density (dots) | 640,000 | 409,600 | 640,000 | 409,600 | 262,144 | |
| LED Type | GOB | GOB | GOB | GOB | GOB | |
| Module Dimensions (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | |
| Module Matrix (dots) | 200 x 200 | 160 x 160 | 200 x 200 | 160 x 160 | 128 x 128 | |
| Portrait of display | Portrait | Portrait | ||||
| Active Dimensions of Display | 750 x 1250 (57") | 1000 x 1750 (79") | ||||
| Native Resolution (dots) | 600 x 1000 | 480 x 800 | 800 x 1400 | 640 x 1120 | 512 x 896 | |
| Weight (kg) | ||||||
| Electrical | Scan Mode | 40S | 26S | 40S | 26S | 32S |
| Video Rate (Hz) | 60 | 60 | 60 | 60 | 60 | |
| Refresh rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | |
| Color Processing | RGB 65536 levels (3×16bit) | RGB 65536 levels (3×16bit) | ||||
| Data Stored on Module | Yes | Yes | ||||
| Input Pvoltage | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz | ||||
| Max.consumption (w) | 765 | 1428 | ||||
| Avg. consumption (w) | 255 | 476 | ||||
| Optical | Brightness (nit) | 4000 | 4000 | |||
| Contrast Ratio | 10000 : 1 | 10000 : 1 | ||||
| Viewing Angle(H/V) | 160° /160° | 160° /160° | ||||
| Dimming Capability | 256 levels | 256 levels | ||||
| Color temperature | 4,500 - 9,000K (Adjustable ) | 4,500 - 9,000K (Adjustable ) | ||||
| Operational | Working Environment | ﹣10℃-+40℃/10%RH-90%RH | ﹣10℃-+40℃/10%RH-90%RH | |||
| Storage Environment | ﹣40℃-+60℃/10%RH-90%RH | ﹣40℃-+60℃/10%RH-90%RH | ||||

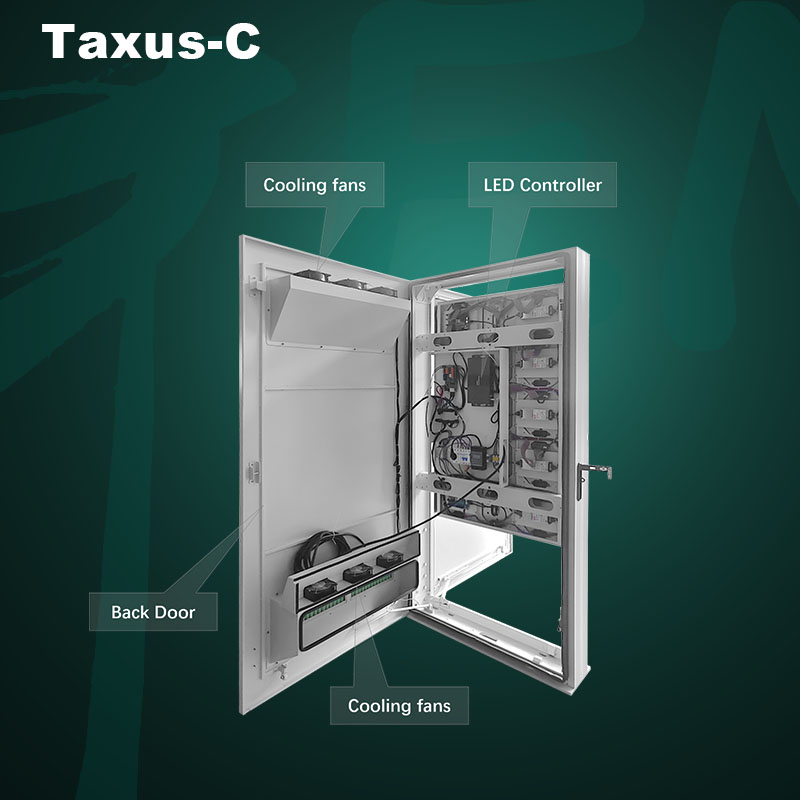

| Cooling | Quiet running vent fans | Quiet running vent fans | ||||
| Ingress Protection | IP65 | IP65 | ||||
| LED Lifetime | 100,000 hours | 100,000 hours | ||||
| MTBF | >5,000 hours | >5,000 hours | ||||
| Service | Front Maintenance | Front Maintenance | ||||
| TECHNICAL PARAMETER | Taxus101 | ||||
| Taxus101-1.2 | Taxus101-1.5 | Taxus101-1.9 | Taxus101-2.6 | ||
| Physical | Pixel Pitch (mm) | 1.25 | 1.56 | 1.95 | 2.60 |
| Pixel Density (dots) | 640,000 | 409,600 | 262,144 | 147,456 | |
| LED Type | GOB | GOB | GOB | GOB | |
| Module Dimensions (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | |
| Module Matrix (dots) | 200 x 200 | 160 x 160 | 128 x 128 | 96 x 96 | |
| Portrait of display | Portrait | ||||
| Active Dimensions of Display | 1250 x 2250 (101") | ||||
| Native Resolution (dots) | 1000 x 1800 | 800 x 1440 | 640 x 1152 | 480 x 864 | |
| Weight (kg) | |||||
| Electrical | Scan Mode | 40S | 26S | 32S | 24S |
| Video Rate (Hz) | 60 | 60 | 60 | 60 | |
| Refresh rate (Hz) | 3840 | 3840 | 3840 | 3840 | |
| Color Processing | RGB 65536 levels (3×16bit) | ||||
| Data Stored on Module | Yes | ||||
| Input Pvoltage | AC 100~240V 50/60Hz | ||||
| Max.consumption (w) | 2295 | ||||
| Avg. consumption (w) | 765 | ||||
| Optical | Brightness (nit) | 4000 | |||
| Contrast Ratio | 10000 : 1 | ||||
| Viewing Angle(H/V) | 160° /160° | ||||
| Dimming Capability | 256 levels | ||||
| Color temperature | 4,500 - 9,000K (Adjustable ) | ||||
| Operational | Working Environment | ﹣10℃-+40℃/10%RH-90%RH | |||
| Storage Environment | ﹣40℃-+60℃/10%RH-90%RH | ||||
| Cooling | Quiet running vent fans | ||||
| Ingress Protection | IP65 | ||||
| LED Lifetime | 100,000 hours | ||||
| MTBF | >5,000 hours | ||||
| Service | Front Maintenance | ||||
